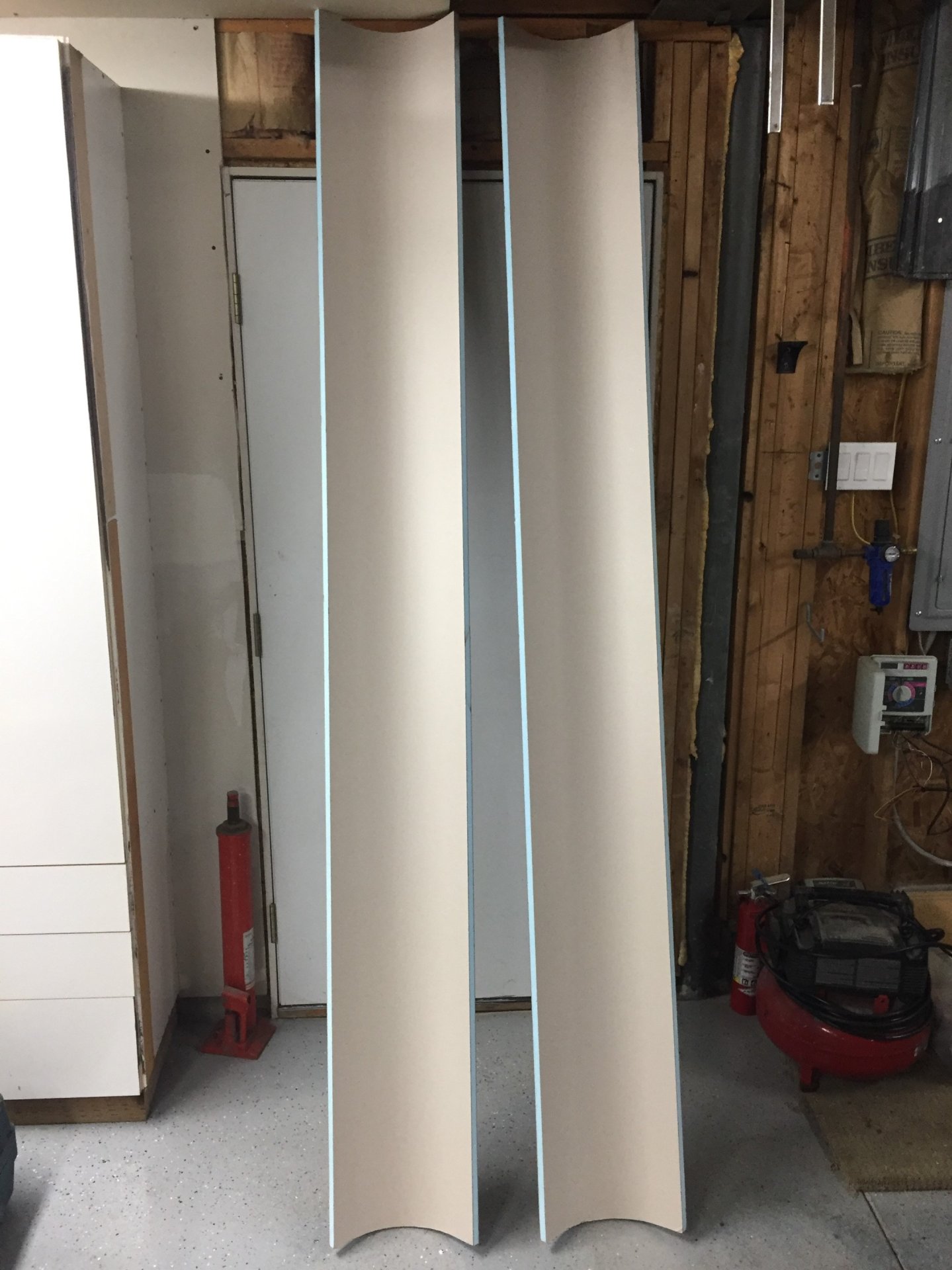

90 Degree Curved Drywall Inside Corners

Description – Used to soften inside corners. Eliminates corner dust/dirt/cobweb traps.

Main uses – Residential, commercial/hospitality, medical facilities, cleanrooms

Sizes – 2” radius up to 24” radius

Product Details

– Inside corners have drywall paper on the concave face, unfinished convex face

– As standard corners have a 2 ¼” flat coming off the curve. For maximum corner strength, double up the stud as shown and meet the drywall half way across the second stud. This makes finishing easier by avoiding floating out a butt on a curve.

– Typically only the end studs are needed. Since the curves are pre-formed, it is not necessary to add multiple studs along the curve to form the drywall around. For radius 12” and above, additional studs should be added at roughly 16” centers to maintain support.

– It is easier to install curved sections first and then butt the flat drywall up too them.

– If you need to cut to length, the easiest way is on a table saw. You can cut with a knife but unlike drywall, you have to cut all the way through both faces. You can’t cut one face and snap like drywall

90 Degree Inside Corners (1/2" thick) 90 Degree Inside Corners (5/8' thick)
Inside Radius Outside Radius Inside Radius Outside Radius
2" 2 1/2" 2" 2 5/8"
2 3/8" 2 7/8" 2 3/8" 3"
3" 3 1/2" 3" 3 5/8"
3 3/8" 3 7/8" 3 3/8" 4"
4" 4 1/2" 4" 4 5/8"
5" 5 1/2" 5" 5 5/8"
5 3/8" 5 7/8" 5 3/8" 6"
5 1/2" 6" 5 1/2" 6 1/8"
6" 6 1/2" 6" 6 5/8"
7" 7 1/2" 7" 7 5/8"
8" 8 1/2" 8" 8 5/8"
9" 9 1/2" 9" 9 5/8"
10" 10 1/2" 10" 10 1/8"
11 1/2" 12" 11 1/2" 12 1/8"
11 7/8" 12 3/8" 11 7/8" 12 1/2"
12"  12 1/2"  12" 12 5/8"
13 1/8"  13 5/8" 13 1/8" 13 3/4"
13 1/2"  14" 13 1/2" 14 1/8"
14" 14 1/2" 14" 14 5/8"
16" 16 1/2" 16" 16 5/8"
18" 18 1/2" 18" 18 5/8"
20" 20 1/2" 20" 20 5/8"
24" 24 1/2" 24" 24 5/8"

90 Degree Inside Corners (1/2" thick)

Inside Radius Outside Radius
2" 2 1/2"
2 3/8" 2 7/8"
3" 3 1/2"
3 3/8" 3 7/8"
4" 4 1/2"
5" 5 1/2"
5 3/8" 5 7/8"
5 1/2" 6"
6" 6 1/2"
7" 7 1/2"
8" 8 1/2"
9" 9 1/2"
10" 10 1/2"
11 1/2" 12"
11 7/8" 12 3/8"
12" 12 1/2"
13 1/8" 13 5/8"
13 1/2" 14"
14" 14 1/2"
16" 16 1/2"
18" 18 1/2"
20" 20 1/2"
24" 24 1/2"

90 Degree Inside Corners (5/8' thick)

Inside Radius Outside Radius
2" 2 5/8"
2 3/8" 3"
3" 3 5/8"
3 3/8" 4"
4" 4 5/8"
5" 5 5/8"
5 3/8" 6"
5 1/2" 6 1/8"
6" 6 5/8"
7" 7 5/8"
8" 8 5/8"
9" 9 5/8"
10" 10 5/8"
11 1/2" 12 1/8"
11 7/8" 12 1/2"
12" 12 5/8"
13 1/8" 13 3/4"
13 1/2" 14 1/8"
14" 14 5/8"
16" 16 5/8"
18" 18 5/8"
20" 20 5/8"
24" 24 5/8"
To get info on how to buy please call us on +1.947.777.9020 or at tom@moderncurvedsolutions.com
