Preformed Curved Drywall Ceiling Coving

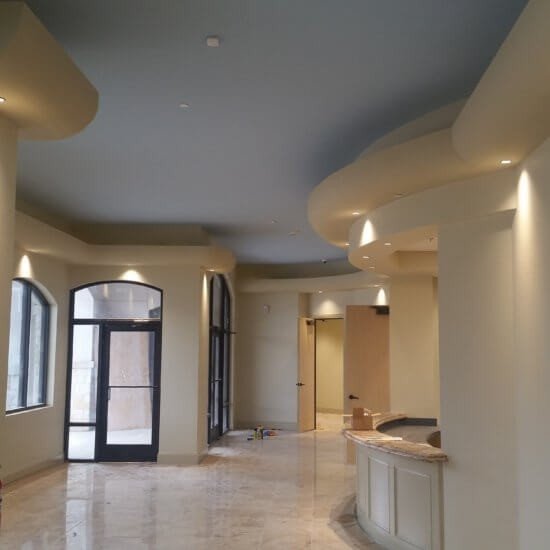

Description – Used to create curved transitions from walls to ceilings

Main uses – Residential, matching plaster coving when remodeling older homes, commercial, hospitality, retail, medical facilities, cleanrooms. Our cove panels make cove and soffit restoration easy.

Sizes – 2” radius up to 24” radius

Installs in minutes, no framing ribbing required to support curve. Restoring a historic house or building? We can match your old and damaged ceiling cove.

Product Details

How to curve drywall for cove ceilings

– Coves have drywall paper on the inside concave face, unfinished convex face

– As standard corners have a 2 ¼” flat coming off the curve. For maximum corner strength, double up the stud as shown and meet the drywall half way across the second stud. This makes finishing easier by avoiding floating out a butt on a curve.

– Typically only the end studs are needed. Since the curves are pre-formed, it is not necessary to add multiple studs along the curve to form the drywall around. For radius 12” and above, additional studs should be added at roughly 16” centers to maintain support.

– It is easier to install curved sections first and then butt the flat drywall up too them.

– If you have a long run of coving, let us know. We can put tapers (like factory edge of drywall) where the curved ends meet to avoid having to float out a butt around the curve.

– If you need to cut to length, the easiest way is on a table saw. You can cut with a knife but unlike drywall, you have to cut all the way through both faces. You can’t cut one face and snap like drywall.


 Coving (1/2" thick)

Coving (5/8" thick)
Inside Radius Outside Radius Inside Radius Outside Radius
2" 2 1/2" 2" 2 5/8"
2 3/8" 2 7/8" 2 3/8" 3"
3" 3 1/2 " 3" 3 5/8"
3 3/8" 3 7/8" 3 3/8" 4"
4"  4 1/2" 4" 4 5/8"
5" 5 1/2" 5" 5 5/8"
5 3/8" 5 7/8" 5 3/8" 6"
5 1/2" 6" 5 1/2" 6 1/8"
6" 6 1/2" 6" 6 5/8"
7" 7 1/2" 7" 7 5/8"
8" 8 1/2" 8" 8 5/8"
9" 9 1/2" 9" 9 5/8"
10" 10 1/2" 10" 10 5/8"
11 1/2" 12" 11 1/2" 12 1/8"
11 7/8" 12 1/2" 11 7/8" 12 5/8"
12" 12 5/8" 12 12 5/8"
13 1/8" 13 5/8" 13 1/8" 13 5/8"
13 1/2" 14" 13 14"
14" 14 1/2" 14" 14 1/2"
16" 16 1/2" 16" 16 5/8"
18" 18 1/2" 18" 18 5/8"
20" 20 1/2" 20" 20 5/8"
24" 24 1/2" 24" 24 5/8"


Coving (1/2" thick)

Inside Radius Outside Radius
2" 2 1/2"
2 3/8" 2 7/8"
3" 3 1/2"
3 3/8" 3 7/8"
4" 4 1/2"
5" 5 1/2"
5 3/8" 5 7/8"
5 1/2" 6"
6" 6 1/2"
7" 7 1/2"
8" 8 1/2"
9" 9 1/2"
10" 10 1/2"
11 1/2" 12"
11 7/8" 12 3/8"
12" 12 1/2"
13 1/8" 13 5/8"
13 1/2" 14"
14" 14 1/2"
16" 16 1/2"
18" 18 1/2"
20" 20 1/2"
24" 24 1/2"

Coving (5/8' thick)

Inside Radius Outside Radius
2" 2 5/8"
2 3/8" 3"
3" 3 5/8"
3 3/8" 4"
4" 4 5/8"
5" 5 5/8"
5 3/8" 6"
5 1/2" 6 1/8"
6" 6 5/8"
7" 7 5/8"
8" 8 5/8"
9" 9 5/8"
10" 10 5/8"
11 1/2" 12 1/8"
11 7/8" 12 1/2"
12" 12 5/8"
13 1/8" 13 3/4"
13 1/2" 14 1/8"
14" 14 5/8"
16" 16 5/8"
18" 18 5/8"
20" 20 5/8"
24" 24 5/8"
To get info on how to buy please call us on +1.947.777.9020 or email us at tom@moderncurvedsolutions.com
